Bread Pan Machine

This product has been discontinued and removed from our shelves.
Bread Pan Machine

LIGHT is an experienced bread pan machine manufacturer, based in China. Bread pan is a new type of snack made of wheat flour. It can serve as healthy breakfast cereal or snacks for adults because of its low oil content. LIGHT bread pan machine is equipped with a special cutter designed by our company independently. It can finish mixing, extrusion, cooking, oil spraying, cutting, flavoring and baking at one stroke, and finally comes into a kind of golden colored snack with pleasant smell.

If you are searching for bead processing equipment, why not choose this one? We are confident that our bread pan machine will impress you deeply.

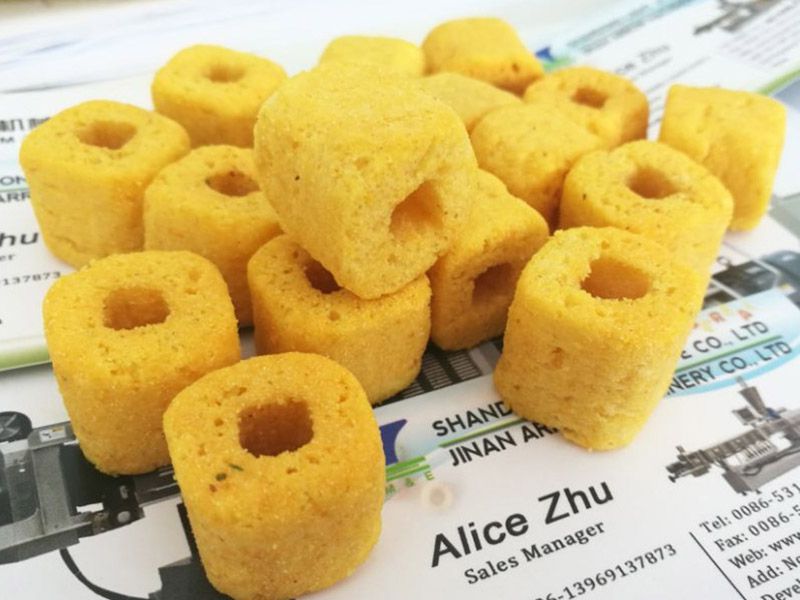

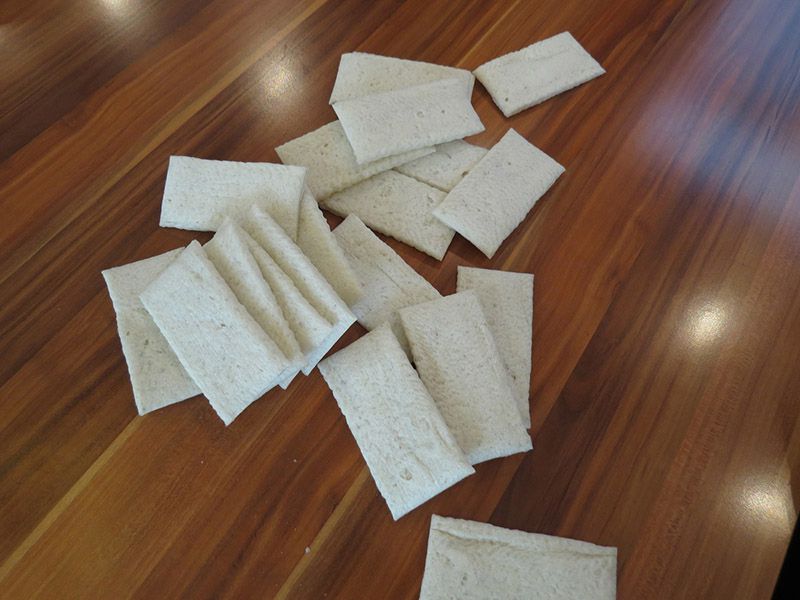

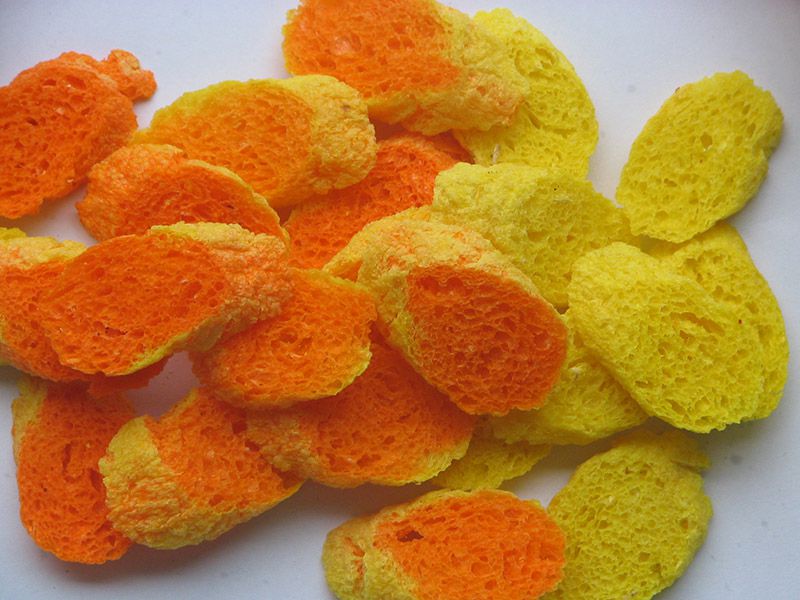

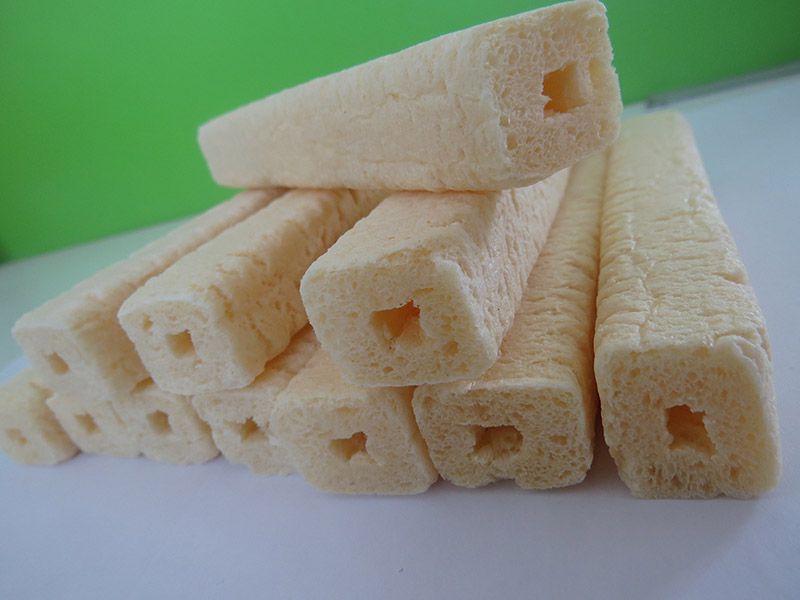

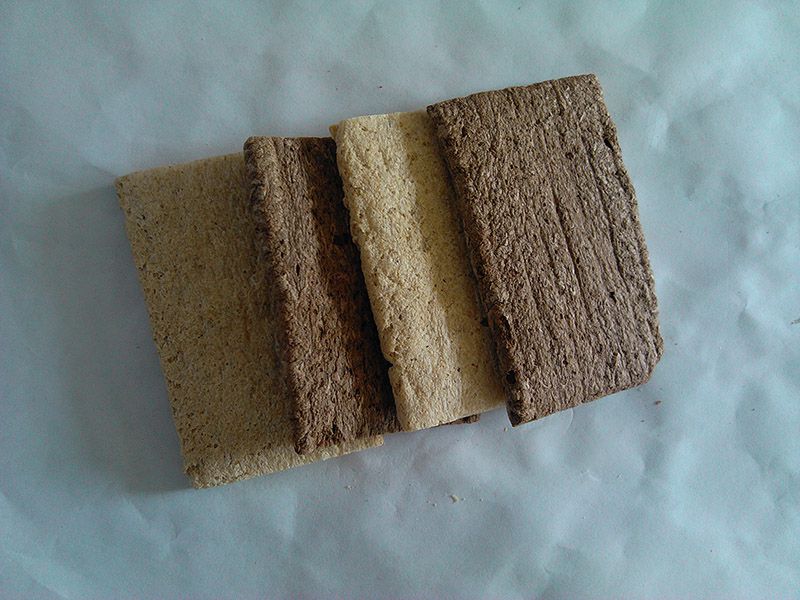

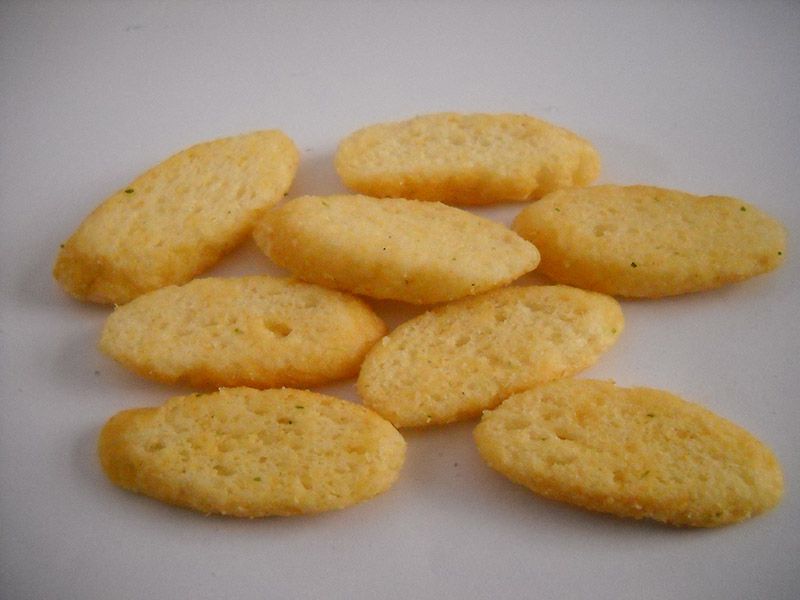

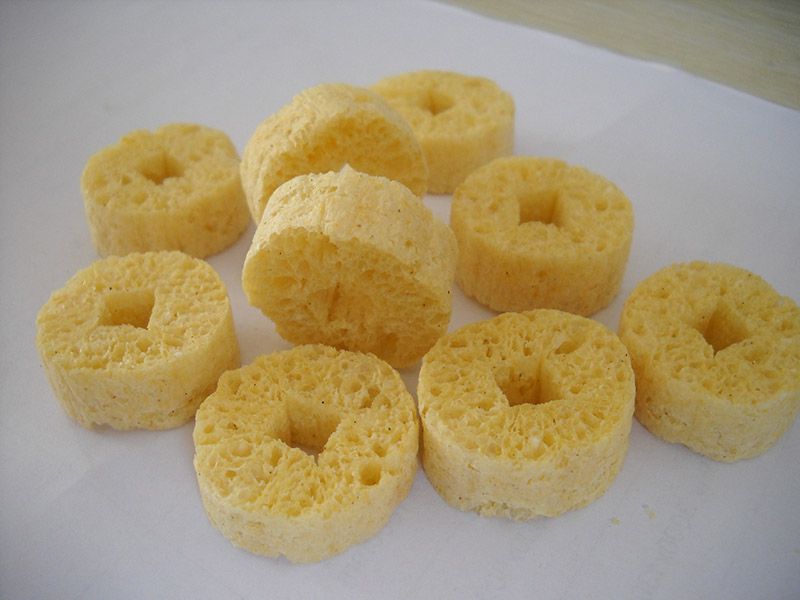

Sample Display

  • Bread Pan Machine
  • Bread Pan Machine
  • Bread Pan Machine
  • Bread Pan Machine
  • Bread Pan Machine
  • Bread Pan Machine
  • Bread Pan Machine

Production process
Materials Preparation→Mixing→Convey→Extruding→Injection→Cutting→Convey→Drying→Oil Spraying→Seasoning→Packaging

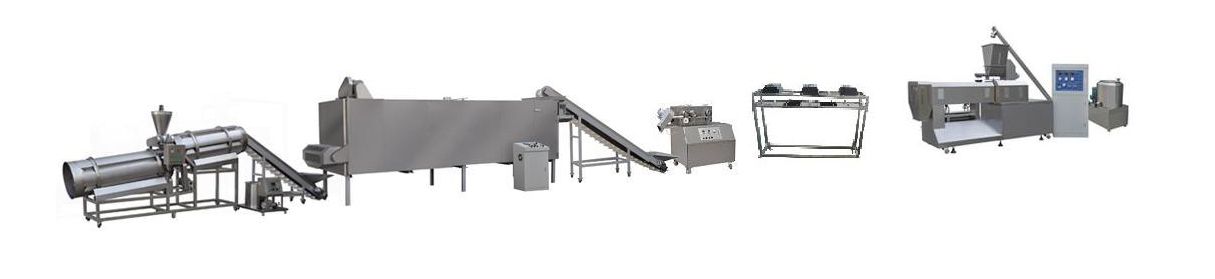

Components
1. Flour Mixer: choose the mixer according to your desired output, 3 types available: 25kg, 50kg, 100kg
2. Screw Conveyor: powered by high efficiency motor
3. Bulking machine: choose different forming machines according to your output requirements (ranging from 130kg/h to 1500kg/h)
4. Elevating Conveyor: conveys mixtures to the oven, the height depends on the oven. A pneumatic conveyor is a suitable alternative
5. Oven: with a gas or electric heating source, the double layer belt inside is made of stainless steel. The temperature can be adjusted between 0°C and 240°C, and the baking time can be adjusted according to the speed.
6. Seasoning Machines: eight square seasoning machines, a double drum seasoning machine, and single drum seasoning machines are available according to your needs.

Parameters

Model Installed Power Power Consumption Output Size (L*W*H)
FT63 Inflating Snacks Process Line 150kw 110kw 250-300kg/h 23000x1500x2200mm
FT75 Inflating Snacks Process Line 186kw 139.5kw 300-500kg/h 24000*2000*2800mm
FT95 Inflating Snacks Process Line 295kw 222kw 800-1200kg/h 31000*3500*4300mm
LT65 Inflating Snacks Process Line 84kw 59kw 120-150kg/h 21000x1200x2200mm
LT70 Inflating Snacks Process Line 132kw 92kw 200-250kg/h 23000x1500x2200mm
LTS85 Inflating Snacks Process Line 239kw 167kw 300-500kg/h 28000x3500x4300mm

Our Advantages
1. Compact design that enables easy operation with an optional modulator for the curing process.
2. Touch-screen PLC controller for fast and easy control.
3. Electric parts are supplied by leading brands like Schneider and BALTUR.

We at LIGHT can also produce other food processing machine, including meat production machines, peanut roasters, sugar coater which are CE certified and in demand in Southeast Asia areas and the Middle East areas such as Malaysia, Indonesia, and Pakistan. We are really a reliable supplier of bread pan machine and related machinery, based in China! If you have any need, please contact us directly.

Our machinery design department and technology department are comprised of experienced engineers and food production equipment designers. LIGHT food processing machinery, animal food machinery, food extruders, etc. are used widely in the field of food processing, and we also provide customers with total food-production and processing solutions. We take pride in our ability to provide newer, better equipment to our customers to handle their ever changing needs.
