    This product has been discontinued and removed from our shelves.

    CNC woodworking machine is suitable for furniture, decoration, woodworking, instrument and wooden craft industries. It can be used to create various patterns on wood furniture, wooden door, and more.

    The following two types of CNC woodworking machines are quick sellers at home and abroad.

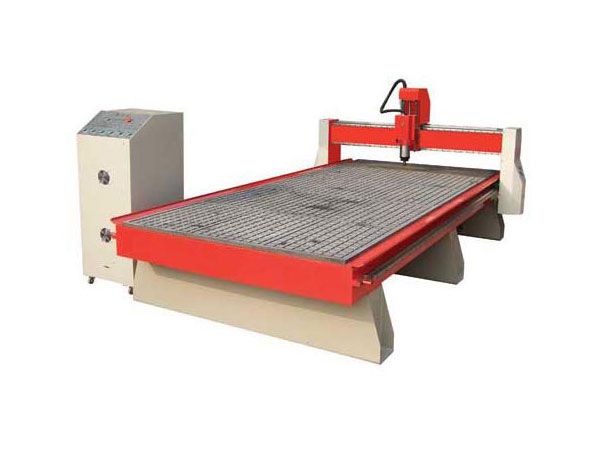

    CNC Woodworking Machine, LT-1325

    Features
    1. CNC woodworking machine can be used in advertising industry for characters cutting, plate production, LED and neon channel, and light box mold production.
    2. High automation, the spindle movement is controlled by software.
    3. High speed, high efficiency, the speed of running can reach 8-30 m / min.
    4. High power spindle provides better operation stability.
    5. This CNC woodworking machine is driven be dual-motor, providing high speed and reliable performance. So, it can work for a long time without vibration and deformation.

    Specifications

    Machine Model LT-1325
    X.Y working area 1300*2500mm
    Z working area >120mm
    The largest operating speed 8-30m/min
    Resolution 0.01mm
    Repeat positioning accuracy 0.05mm
    Feeding the greatest height 120mm
    Command G code*.u00*.mmg*.plt
    Surroundings for software windows98/2000/xp
    Power(not include the spindle) 1500w
    Work voltage 220V/50Hz (380V/50HZ)
    Spindle rotating speed 24000rpm/min
    Work Mode Stepper
    Optional configuration 3kw/4.5kw/6kw China spindle,HSD spindles,DSP controller,imported linear guide, servo motor etc

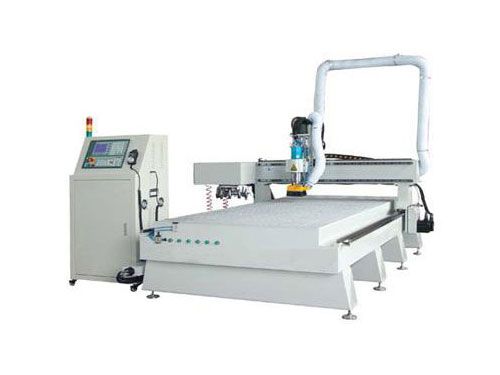

    CNC Woodworking Machine, LT-1530

    Features
    1. This CNC woodworking machine is equipped with highly precise double-nut ball screw.
    2. Linear square guides provide the engraving machine a long service life and high precision performance.
    3. High-speed drive, with the speed 2 m/min faster than traditional models.
    4. Continuous engraving after breakpoint.
    5. The woodworking machine is compatible with Type3, artcarm, castmate, proe, Corelerow, Wentai, and other CAD and CAM software.
    6. High power, water-cooling spindle adopts variable frequency speed control system enables the engraving machine to cut synthetic glass of 20-30mm at one stroke. So, the machine is ideal for advertising, mould making, gifts, and wood furniture industries.

    Specifications

    Machine Model LT-1530
    X.Y working area 1600*3100mm
    Z working area >200mm
    Table 1700*3600mm
    The largest operating speed 8m-30m/min
    Clamping type Vacuum adsorption
    Processor DSP/ Speeds 100MHz
    Interface USB Handle
    Command G code *.u00*.mmg*.plt
    Surroundings for software windows98/2000/xp/DSP
    Power(not include the spindle) 1500-2000W
    Work voltage 380V/50Hz
    Spindle power 4.5KW
    Spindle rotating speed 18000-24000rpm/min
    Work Mode Stepper or servo
    Optional configuration 3kw/4.5kw/6kw China spindle,HSD spindles,DSP controller,imported linear guide, servo motor etc

    In addition to CNC woodworking engraver, we can also offer advertising CNC engraving machine, laser machine and CNC plasma cutting equipment, to name a few. As an experienced CNC engraving machine, we can also provide customization services. If you have any related need, please feel free to contact us. We are ready to serve you.
