Extruded Pellet Machine

Glad to meet you. We are a major manufacturer of extruded pellet machine, based in China. With the help of experienced and skilled staff, we are able to offer our clients full set of solutions according to their specifications. These measures will make the clients dispel their worries about investment. Besides, we keep upgrading the production technology, improving the quality of our extruded pellet machine and perfecting the service to meet the clients' special demands.

The raw food material can be potato starch, corn starch, cassava starch, wheat flour and so on. The extruded pellet machine produces extruded snacks according to the following steps. First, single-screw extruder extrudes and cuts the raw materials into semi-finished products. By changing the dies, the pellet can be processed in different shapes like shell, spiral, square tube, circle tube. Then, the semi-finished products should be dried and fried. Finally, delicious and crisp finished products come to existence.

Sample Display

  • Extruded Pellet Machine
  • Extruded Pellet Machine
  • Extruded Pellet Machine
  • Extruded Pellet Machine
  • Extruded Pellet Machine
  • Extruded Pellet Machine
  • Extruded Pellet Machine
  • Extruded Pellet Machine
  • Extruded Pellet Machine
  • Extruded Pellet Machine
  • Extruded Pellet Machine
  • Extruded Pellet Machine
  • Extruded Pellet Machine
  • Extruded Pellet Machine
  • Extruded Pellet Machine

Peanut Butter is one of the most popular flavoring foods because of its pleasant smell. With high protein, various vitamins, peanut butter is helpful of healthy, appearance and anti-aging. This machine can produce pure, salty type peanut butter and sweet peanut butter.

Parameters of Extruded Pellet Machine

Model Installed Power Power Consumption Output Size
FT63 142KW 107KW 150-200kg/h 27000x2000x2000mm
FT75 178KW 125KW 250-300kg/h 29000x2000x2000mm
FT95 278KW 225KW 400-600kg/h 42000x2000x3200mm
LT100 117KW 82KW 80-100kg/h 26000x2000x2000mm

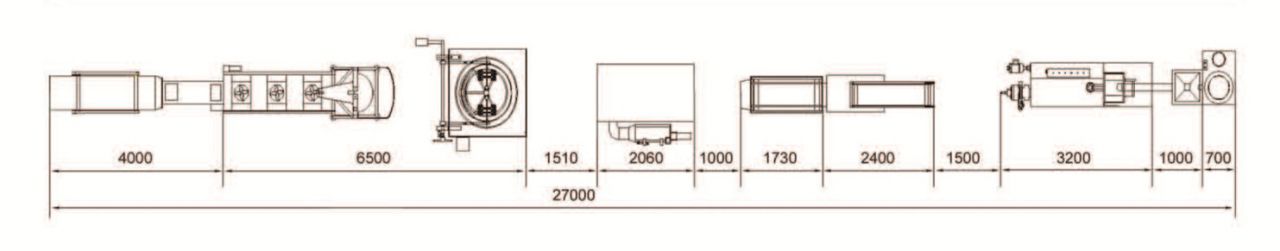

Flow Chart

Extruded Pellet Machine

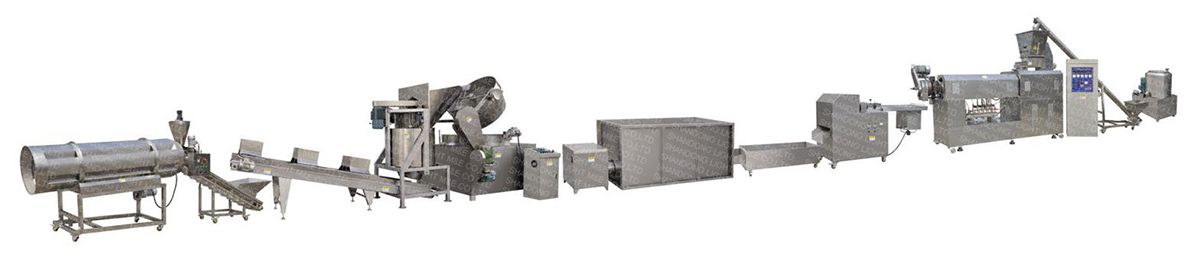

Our extruded pellet machine is a food production line composed of the following components

  • Flour Mixer
  • Screw Conveyor
  • Single Screw Extruder
  • Drawing Cutter
  • Drying Box
  • Cooling Bed
  • Batch Fryer
  • Eight Square Seasoning Machine

Our company is located in Jinan, Shandong province. There are convenient transportation facilities such as deepwater wharf, high ways, air harbors and railways. Thus both our and our clients transportation cost is greatly saved.

If you have come here for quality extruded pellet machine, or any other type of equipment like baking snack machinery, meat production equipment, etc. you have come into the right place. We welcome you to contact us for more information.
Our machinery design department and technology department are comprised of experienced engineers and food production equipment designers. LIGHT food processing machinery, animal food machinery, food extruders, etc. are used widely in the field of food processing, and we also provide customers with total food-production and processing solutions. We take pride in our ability to provide newer, better equipment to our customers to handle their ever changing needs.
