Professional Manufacturer of Food Processing Machinery
Meat Forming Machine
Meat Forming Machine

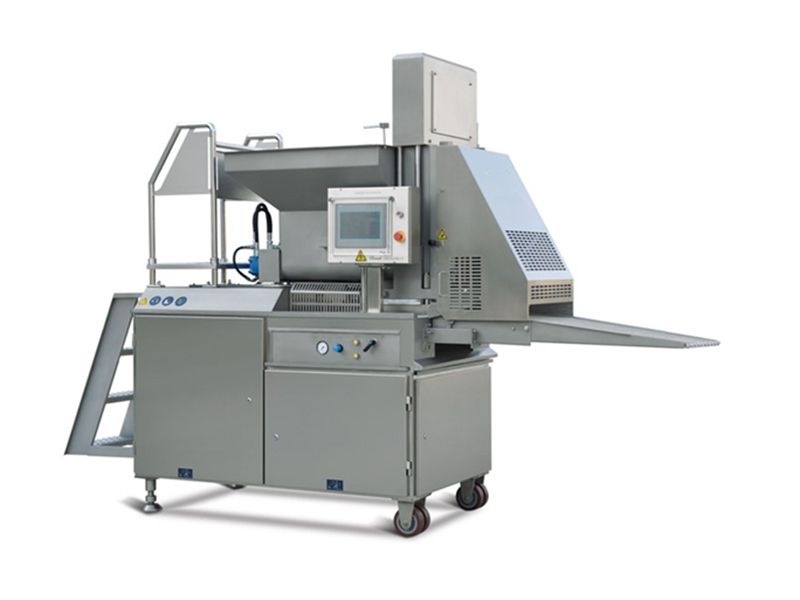

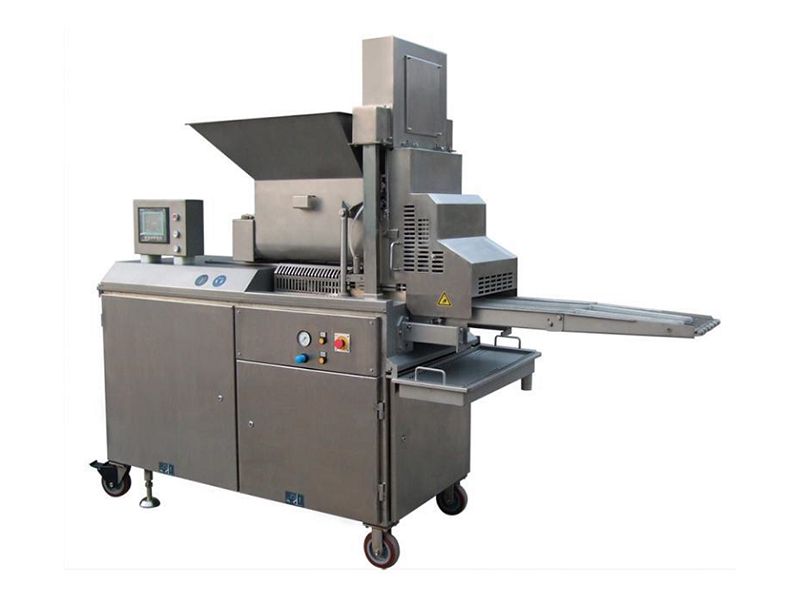

Automatic multifunction forming machine performs various procedures such as meat filling, forming and outputting automatically. It can also be used in combination with preduster, fryer, cooker, instant freezer and packing machine, etc. to form a complete ready-to-eat food production line. In order to ensure precise food forming, this meat forming machine is designed with a four-screw feeding system.
Our automatic multifunction forming machine features a high production capacity and stable performance. What's more, it is easy to change food accurately and control the costs efficiently. It is widely used in the forming procedure of minced, sliced, ground poultry meat such as beef, pork, lamb, chicken, seafood like fish, shrimp, and vegetables such as potato, tuber crops etc. The formed meat products have cube meat texture. And the finished products resemble meat very much which makes them more popular.
- Electrical apparatus
This multifunction forming machine is equipped with original SIEMENS PLC control system coming with touch screen and Chinese and English operating system as well as automatic alarm system. This ensures much easier equipment operation. - Safe device
Safe device like magnetic protection switch is available to ensure safe operation. - Hydraulic parts
VICKERS, STAUFF, PARKER and INTERGRADTE HYDRAULIC parts are adopted to guarantee the stable running of the whole machine. - Pneumatically system
Completely FESTO system from Germany. - In addition, this automatic multifunction forming machine is primarily made using quality stainless steel and food grade plastic materials, so it is safe and reliable to use and in accordance with HACCP standard.
- Power:15kW
- Capacity: Around500~1000kg/h (depending on the product thickness)
- Speed: 15~60 strokes/min
- Product thickness: 6~40mm
- Weight error: ≤5%
- Max. diameter: 150mm (Patty diameter)
- Filling pressure: 3~15Mpa (adjustable)
- Dimensions: 3170×1176×2436mm
- Power: 11.12kW
- Capacity: Around 500kg/h (depending on the product thickness)
- Output: 15~50 times/min
- Product thickness: 6~25mm
- Weight error: ≤5%
- Max. diameter:135mm (Patty diameter)
- Filling pressure: 3~15Mpa (adjustable)
- Dimensions: 2828×830×2136mm

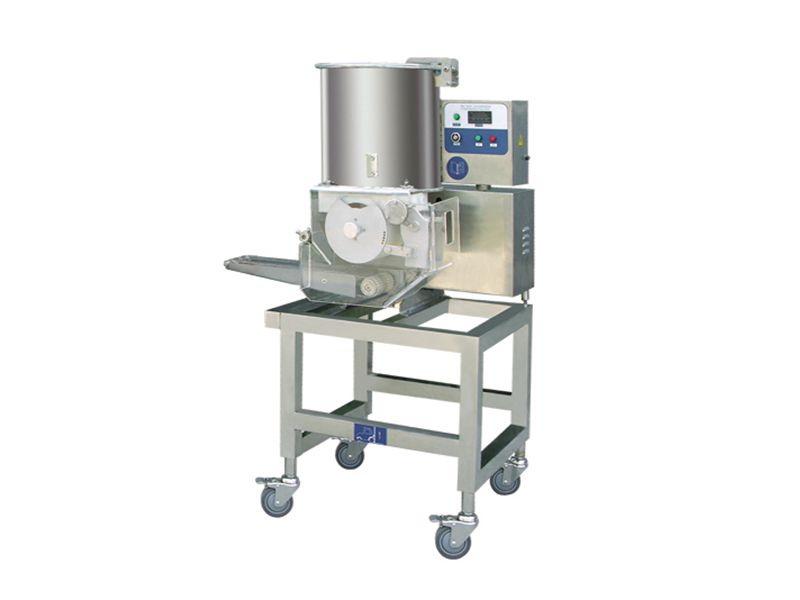

Patty forming machine is suitable for producing chicken nuggets, burger cakes and potato taro cakes in various shapes with a diameter within 100 mm and a thickness of 6-18mm.
- Power: 0.55kW
- Capacity: Around100kg/h (depending on the product thickness)
- Speed: 2100 strokes/h
- Product thickness: 6~18mm
- Weight error: ≤5%
- Max. diameter: 100mm (Patty diameter)
- Hopper volume: 30L
- Dimensions: 715*600*1400mm
Meat processing equipment such as food extruder, seasoning machine, packing machine, baking snack machinery is also available here. We welcome you to purchase our meat forming machine and related products. Please contact us if you have any questions about our products.
