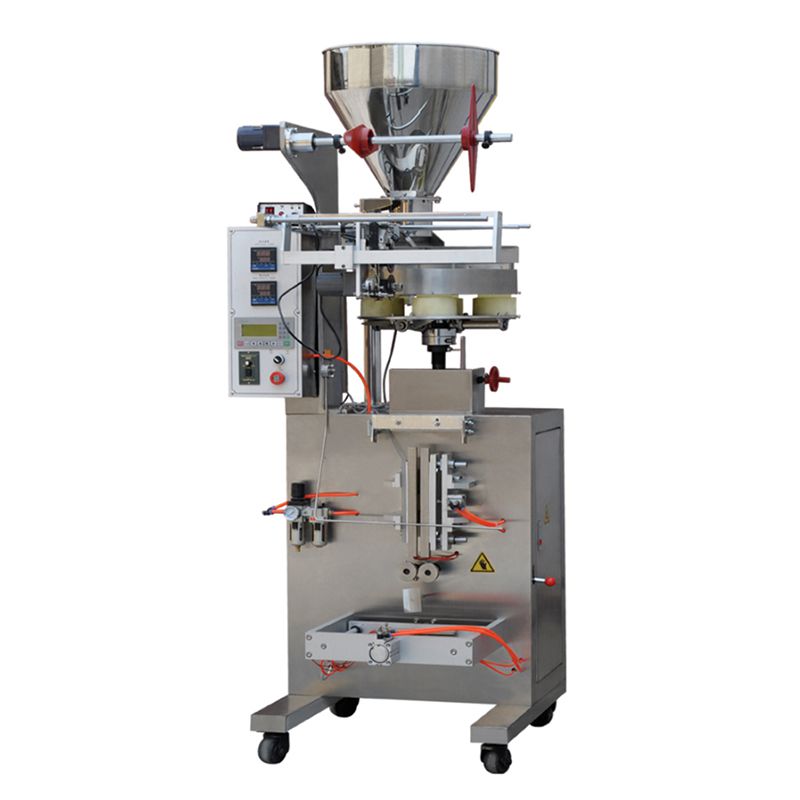

Volumetric Packing Machine
Volumetric Packing Machine
The Volumetric packing machine is widely used in food factories. You can choose different models of packing machines according to the packing bag size, packing weight and packing speed.
The automatic vertical snacks food packing machine completes the whole procedure of feeding, measuring, bagging, date printing, charging (exhausting), and finished product out-putting automatically.
The Volumetric snacks/nuts packing machine is suitable to package the granule materials, such as puffed snacks food, cereal snacks food, crispy rice, jelly, candy, pistachio, seeds, peanuts nuts, etc.
Main Features
- Famous brand PLC control system, wide version touch screen, convenient to operate.
- Various package sizes can be made, by changing the former, the packing length is adjustable, Nitrogen filling device can be added.
- Packing material: any laminated film such as POPP/CPP, POPP/VMCPP, BOPP/PE, PET/AL/PE, NY/PE, PET/PET, etc.
Specifications
| Model |
LTK500
|
LTK1000
|
| Capacity | 30-70bags/min | 30-60bags/min |
| Bag size | Width:50-150mm | Width:100-190mm |
| Length:50-160mm | Length:100-280mm | |
| Max film width | Max 320mm | Max 400mm |
| Film thickness | 0.04-0.09mm | 0.04-0.09mm |
| Power source | 2kW 220V 50HZ | 2kW 220V 50HZ |
| Air consumption | 0.8Mpa 0.5m3/min | 0.8Mpa 0.6m3/min |
| Dimension (L×W×H) | L1000 x W800 x H1900 mm | L1200 x W900 x H2000 mm |
| Weight | 300kg | 350kg |
Our machinery design department and technology department are comprised of experienced engineers and food production equipment designers. LIGHT food processing machinery, animal food machinery, food extruders, etc. are used widely in the field of food processing, and we also provide customers with total food-production and processing solutions. We take pride in our ability to provide newer, better equipment to our customers to handle their ever changing needs.
