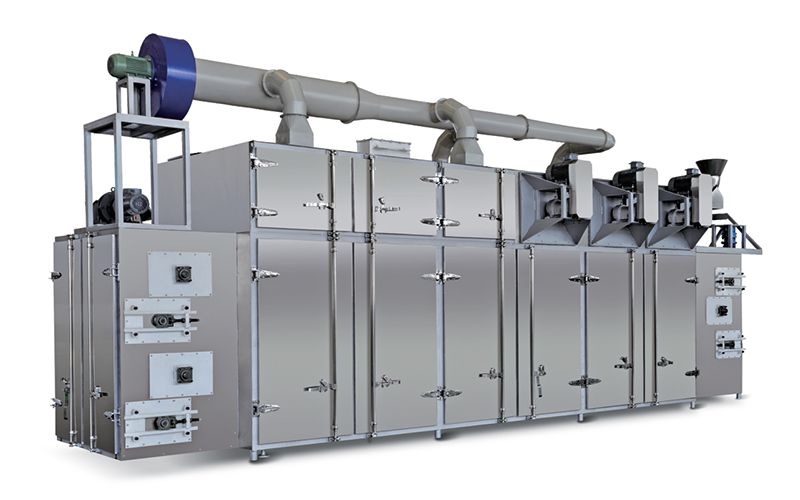

Cross-Flow Circulation Belt Dryer
Cross-Flow Circulation Belt Dryer
Cross circulation efficient dryers provide a large capacity drying solution for high moisture food such as soya protein, pet food and aquatic feed.
This type of machine can effectively dry pet food, aquatic feed and other food to reach the ideal water resistance and improve the appearance quality. It adopts cross-flow circulation and is equipped with a moisture exhaust fan. The wind direction forcibly penetrates the materials from top to bottom and the hot air takes out the moisture from products.
We can also supply customized dryer machines according to your special needs.
Main Features
- Efficient and energy-saving.
- Circulation of an air flow perpendicular to the grain flow. The upper and lower layers are separate to achieve good insulation performance.
- Separate dehumidifier with high dehumidification speed.
- The insulation door is easy to open and clean, showing good sealing performance.
- Heat-resistant silicone seals, display good sealing and insulation performance and strong durability.
- Frequency control. The drying time is adjustable.
- The output can be increased by adding more modules.
- The upper heating box adopts steam heating, safe to operate. Such a design also prevents fire caused by dust accumulation.
- Equipped with an automatic cleaning device to collect dregs, easy to clean.
Specifications
| Model |
Three-layer six-meter Conveyor oven (dryer) (500kg)
|
Three-layer six-meter conveyor oven (dryer) (1T)
|
Four-layer eight-meter conveyor oven (dryer) (1.5-2T)
|
Four-layer combined conveyor oven
|
| Function | Remove moisture | Remove moisture | Remove moisture | Remove moisture |
| Products | Protein, feed | Protein, feed | Protein, feed | Protein, feed |
| Total power | 1.5(circulation fan) ×4+0.11+1.5(drive motor) +1.5(exhaust fan) =9kW | 3(circulation fan) ×4+1.5(drive motor) +1.5(exhaust fan) + 0.37(slag remover) ×2 =15.74kW | 4(circulation fan) ×6 + 2×1.5(drive motor) + 2×0.55(slag remover＋feeder)+3(exhaust fan)=31.85kW | 5.5×6+1.5×4+1.5+0.75×2=42kW |
| Dimension (L×W×H) | 6580x1640x3100mm | 6580x1980x3270mm | 8500x3000×4100mm | 8800x2980×4100mm |
| Drying time | 15min-45min | 15min-45min | 19-60min | 11-40min |
| Belt width | 900mm | 1200mm | 1200mm | 2000mm |
| Heating temperature | 110--130℃ | 110--130℃ | 110--130℃ | 110--130℃ |
| Material thickness | 1.6-5cm (at the bulk density of 400kg/m³) | 3-6cm | 4cm-6cm (at the bulk density of 400kg/m³) | 4cm--8cm |
| Capacity | 400kg protein，500kg feed | 1T feed, 600kg protein | 1.5-2T feed, 800kg protein | 3t or more (more modules can be added) |
Our machinery design department and technology department are comprised of experienced engineers and food production equipment designers. LIGHT food processing machinery, animal food machinery, food extruders, etc. are used widely in the field of food processing, and we also provide customers with total food-production and processing solutions. We take pride in our ability to provide newer, better equipment to our customers to handle their ever changing needs.
