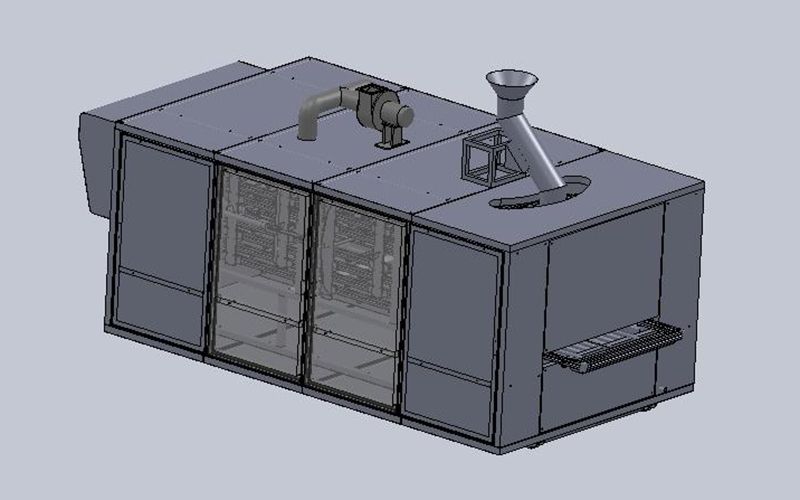

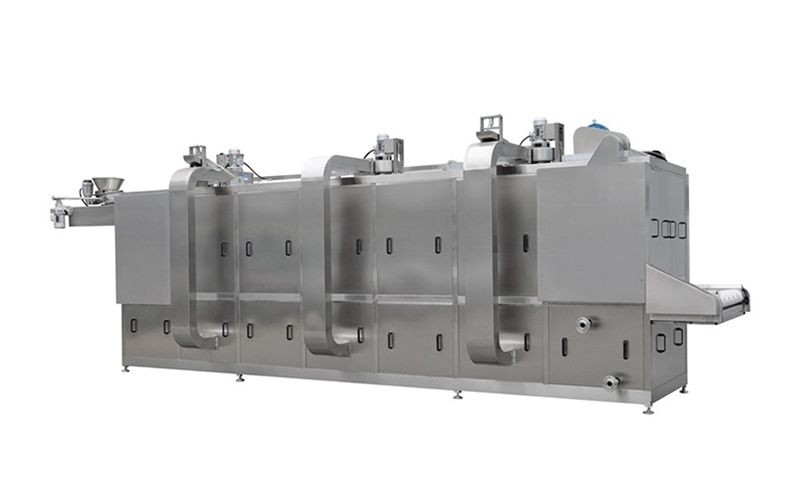

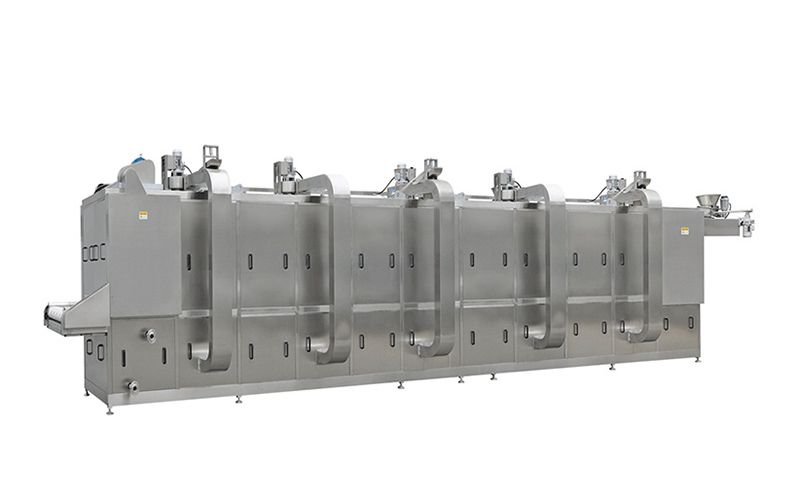

Low Temperature Drying Tunnel
Low Temperature Drying Tunnel
Low temperature drying tunnels are mainly for products that need to be dried under lower temperatures and long drying times, such as fortified rice, pellets, etc.
We are able to supply customized dryer machines according to your needs.
Five-layer twelve-meter (gas)
- Function: Remove moisture
- Products: fortified rice, pellet
Features
- External air circulation, high thermal efficiency.
- Lower heating box.
- The insulation plate is easy to clean and install.
- Suitable for long-time drying in low temperatures.
Specifications
- Total power:0.75kW(circulation fan)×4+0.11kW+1.1kW(drive motor)+2.2kW(air supply fan)=6.21kW
- Dimension:10800x2100x2600mm
- Drying time:50min-120min
- Vibration width:1200mm
- Heating temperature:60-70℃
0.7-1.6cm(at the bulk density of 700kg/m³) - Capacity:600kg fortified rice (adding a fluidized bed), 300kg pellet
Five-layer nine-meter (steam)
- Function: Remove moisture
- Products: fortified rice, pellet
Features
air circulation, thermal insulation panels, easy to clean and install, suitable for long time drying in low temperature.
Specifications
- Total power:0.75kW (circulation fan)×3+0.11kW+1.1kW(drive motor)+2.2kW(air supply fan)=5.46kW
- Dimension:7800x2100x2600mm
- Drying time:35min-90min
- Vibration width:1200mm
- Heating temperature:60-70℃
0.7-1.6cm(at the bulk density of 700kg/m³) - Capacity:300kgfortified rice
Eight-layer Vibration Pre-dryer
- Function: remove moisture
- Products: pre-dried pellet and rice
Features
- Combined structure, easy to dissemble and deliver
- Vibratory conveying, non-sticky, uniform heat, facilitate drying.
- Air circulation is efficient and energy-saving.
- Independent dehumidifier.
Specifications
- Total power:0.55×18+2.2+1.1+2.2+0.18=15.58kW
- Dimension:5300×2500×3000mm
- Drying time:12min-17min
- Vibration width:1300mm
- Heating temperature: around 70℃
0.7-1.6cm (at the bulk density of 700kg/m³) - Capacity:500kg
Our machinery design department and technology department are comprised of experienced engineers and food production equipment designers. LIGHT food processing machinery, animal food machinery, food extruders, etc. are used widely in the field of food processing, and we also provide customers with total food-production and processing solutions. We take pride in our ability to provide newer, better equipment to our customers to handle their ever changing needs.
