Rotary Drum Dryer / Drum Flaker
Rotary Drum Dryer / Drum Flaker

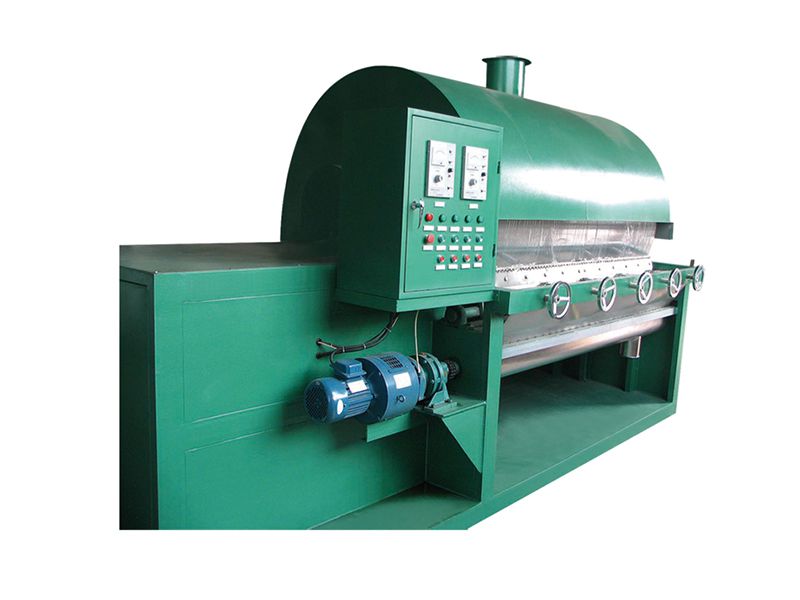

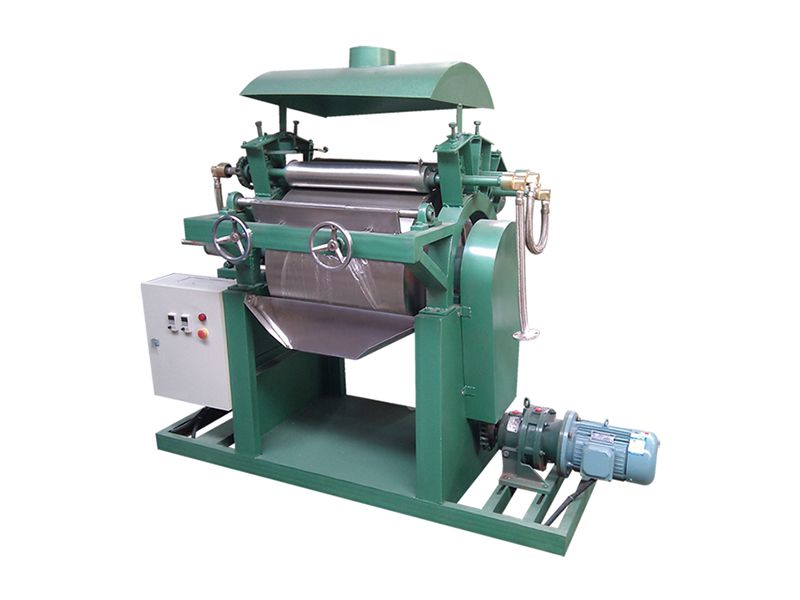

Rotary drum roaster is a type of continuously rotating drying equipment with internal heating and conducting system. Inside the drum, there is a layer of film attached on the drum wall surface. Heat is transferred to the internal wall of the drum through pipes and then to the drum wall and finally the film. The moisture in the materials film evaporates so that the rotary drum roaster dries the materials. Dried products are scrapped out of the drum by the blade fixed on the surface of the drum. Then they fall down onto the spiral conveyor under the blade. The conveyor collects the products and sends them out.
Main Features
- Mainly used for processing flake food, like fish feed, cereal food and modified starch.
- High evaporating speed.
- Easy to operate and clean.
- Small space required.
Specifications
| Model |
LTHG-0606
|
LTHG-0810
|
LTHG-0816
|
LTHG-1020
|
LTHG-1622
|
| Drum Size | Ø600×600mm | Ø800×1000mm | Ø800×1600mm | Ø1000×2000mm | Ø1600×2200mm |
| Thermal Area | 1.1 m2 | 2.5 m2 | 4.0 m2 | 6.3 m2 | 11.0 m2 |
| Evaporation Speed | 5-20kg·H2O/m2/hr | 5-20kg·H2O/m2/hr | 5-20kg·H2O/m2/hr | 5-20kg·H2O/m2/hr | 5-20kg·H2O/m2/hr |
| Motor Power | 3kW | 4.5kW | 6.7kW | 8.4kW | 14kW |
| Heating Source | Electricity, steam or thermal oil | Electricity, steam or thermal oil | steam or thermal oil | steam or thermal oil | steam or thermal oil |
| Rotational Speed | 0.5-5 RPM | 0.5-5 RPM | 0.5-5 RPM | 0.5-5 RPM | 0.5-5 RPM |
We are a major manufacturer of rotary drum roaster in China. In addition to rotary drum roaster, we can also offer coffee roaster, food extruder, and many other types of food processing machinery. If you need any of our products, please contact us. We are looking forward to cooperating with you.
Our machinery design department and technology department are comprised of experienced engineers and food production equipment designers. LIGHT food processing machinery, animal food machinery, food extruders, etc. are used widely in the field of food processing, and we also provide customers with total food-production and processing solutions. We take pride in our ability to provide newer, better equipment to our customers to handle their ever changing needs.
