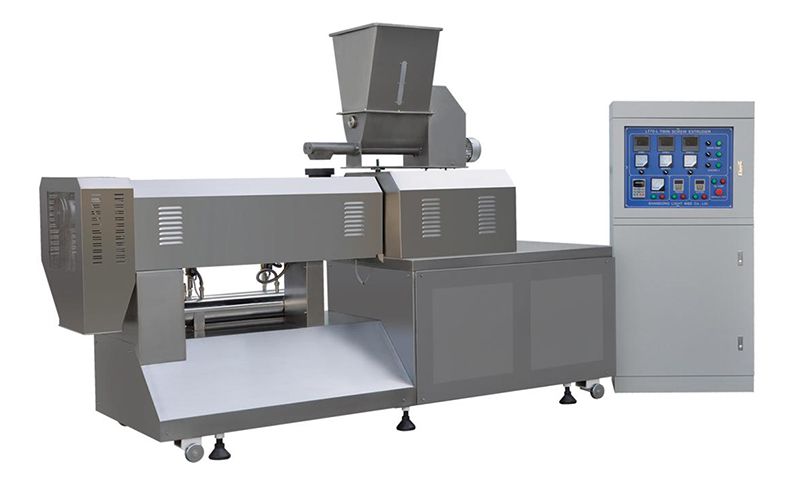

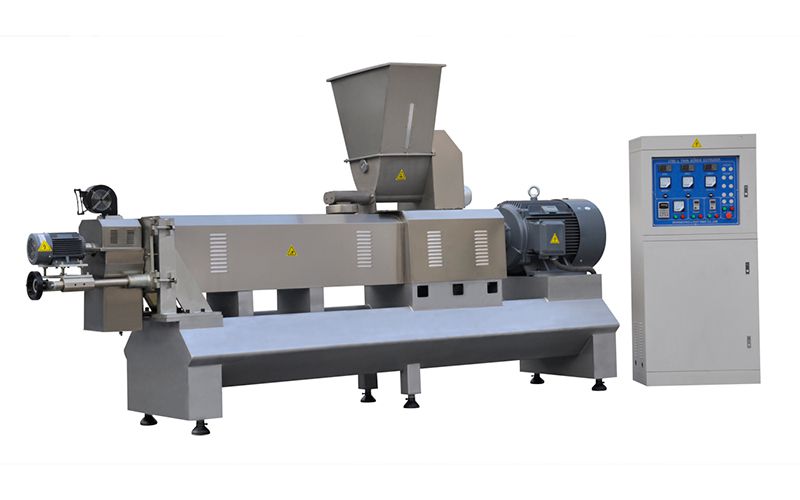

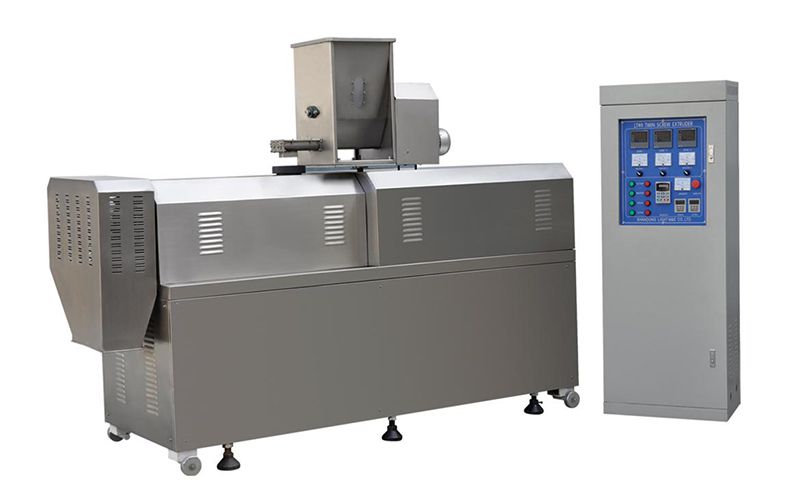

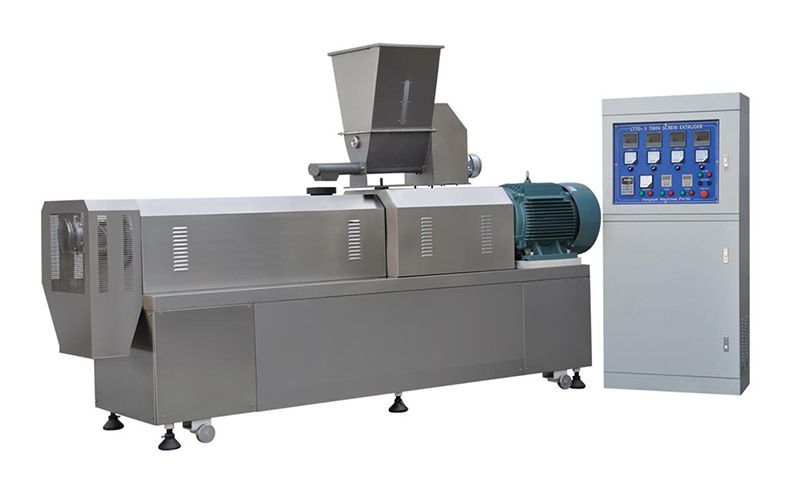

Twin screw extruder also can be called double screw food extruder. It is commonly used as a necessary part in food production lines. It is ideal for foodstuff production in supermarkets, small sized food making enterprises and private businesses.
1. A twin screw extruder consists of feeding system, extrusion system, cutting system, heating system, lubricating system and controlling system.
2. The feeding, extrusion and cutting system are all equipped with variable frequency speed control system. Therefore, the extruder is powerful, steady and energy-saving.
3. The twin screw extruder possesses the function of automatic lubricating and forced cooling which can guarantee the performance and service life.
4. Features stable material feeding.
5. The screws are made of alloy and processed by special technique which helps extend the lifetime of the machine.
6. The screw is designed with different structures and length-to-diameter ratios, so as to enable the food extruder to produce different types of snacks.
|Model||Installed power||Main Drive Power||Output||Size||Applied Products|
|F85||99kw||75KW||500kg/h||5000x980x2200mm||Pet Food, Protein, Snacks|
|DL75||116kw||75KW||250-300kg/h||4590x1160x2020mm||Mainly Used for Soy Protein, Also Modified Starch and Puffs|
|LT70||53kw||37KW||200-250kg/h||3200x760x2000mm||Snacks, Breakfast Cereals, Pet Food.|
|LT70L||53KW||37KW||200-250kg/h||3200x930x2000mm||Pet Food/Nutrition Rice/Snacks|
|LT65-III||34kw||22kw||150kg/h||2550x900x1850mm||Snacks, Breakfast Cereals, Pet Food.|
|S85||99kw||75kw||500kg/h||3800x1100x2350mm||Pet Food, Protein, Snacks|
|LT70L||53kw||37kw||200-250kg/h||3200x930x2000mm||Top Configuration (Facing Cutter, Fully Stainless Steel PLC Hand-touching Screen Control Panel)|
Thanks for your interest in LIGHT Company, a specialized twin screw extruder manufacturer and supplier, located in China. We do not only supply food extruder, but also many other types of food processing equipment, including peanut butter machine, meat production line and so on. In addition, we provide our customers with equipment testing and commissioning, operator training, and installation services.
If you need any types of food production equipment to produce crispy snacks, puffed snacks, milk powder and pet foods, please don't hesitate to contact us. We are confident that we can provide the product you want.
